CNC Cutting Machines
Cutting tubes and profiles up to Ø300 mm
Automatic saws for serial material preparation and operational cutting of tubes, profiles and rods with repeat length settings and multi-piece cutting on selected machines.
BLM GROUP TwinCut
80
Max. tube diameter (mm)
45
Max. diameter for 2 tubes (mm)

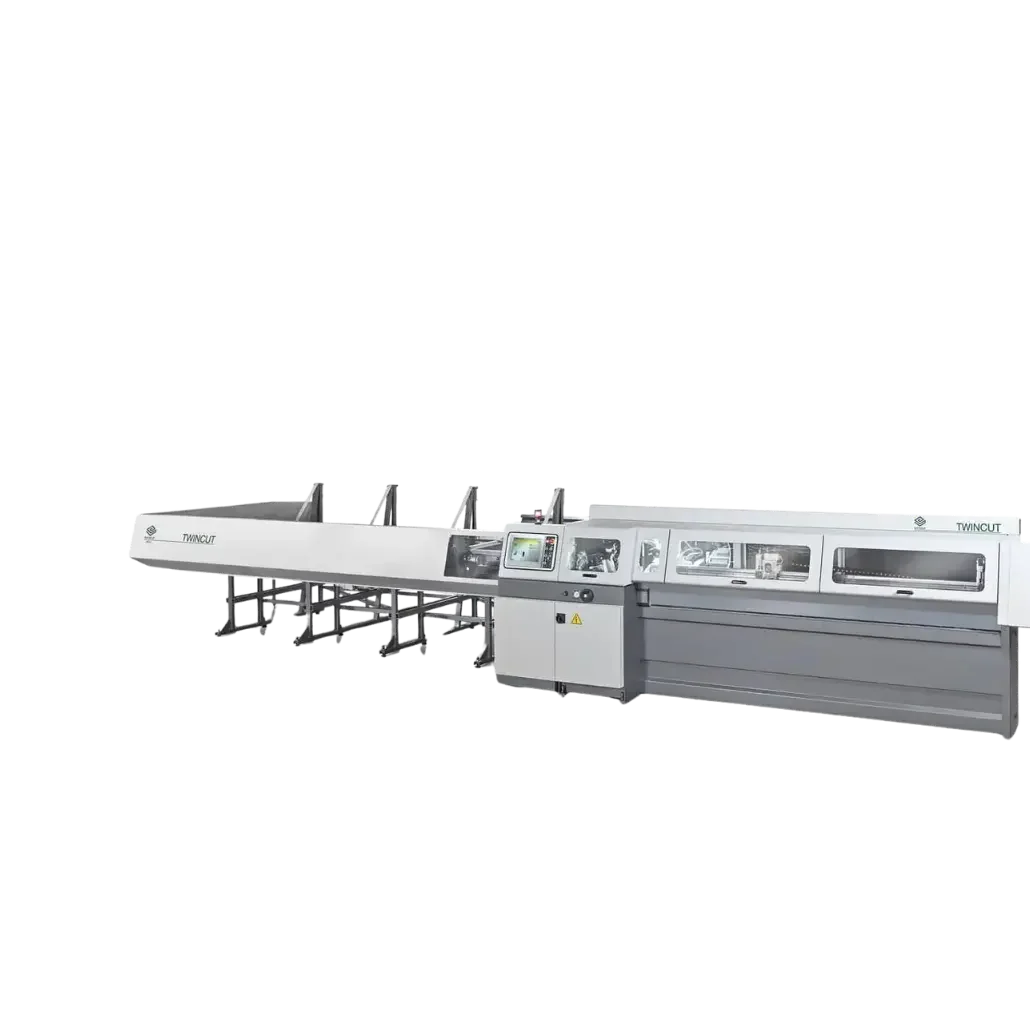

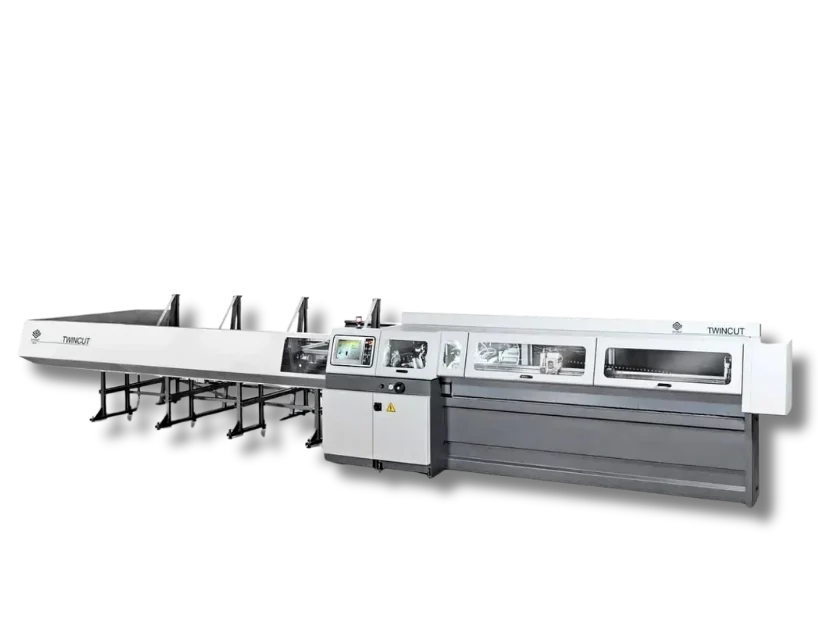

The BLM TwinCut is a fully automated tube cutting system designed for efficient processing of one or two tubes at a time. In our facility, it cuts tubes up to 80 mm in diameter, speeding up production while ensuring stable, repeatable cutting of tube components. The system uses a fiber laser to deliver clean cuts, high repeatability and minimal need for secondary deburring.
| Max. tube diameter (mm) | 80 |
| Max. diameter for 2 tubes (mm) | 45 |
| Max. part length (mm) | 6 090 |
| Loader capacity (t) | 4 |
PEGAS 300x300 Herkules X-CNC
300
Max. cutting capacity (mm)
The hydraulically operated PEGAS 300×300 Herkules X-CNC multi-feed band saw delivers stable, repeatable cutting of bars, tubes and profiles in preparation for subsequent machining. Automatic material feeding and CNC control allow material to be cut to precise lengths without manual intervention, increasing production efficiency and reducing the risk of errors.
| Max. cutting capacity for round timber (mm) | 300 |
| Max. cutting capacity profile (mm) | 300 × 300 |
| Minimum divisible diameter (mm) | 30 |
| Min. cut length (mm) | 10 |
| Type of cut | Kolmé dělení |
PILOUS ARG 300 CF-NC automat
300
Max. cutting capacity (mm)
The PILOUS ARG 300 CF-NC Automat is an automatic metal band saw designed for cutting bars, tubes, and profiles, with capability for both square and mitre cuts (90° to 45°). Built for repeat production, it delivers stable cutting and controlled cutting conditions, with continuously variable blade speed controlled by a variable frequency drive (VFD).
| Angle cuts option | 90° až 45° |
| Max. cutting capacity for round timber (mm) | 300 (90°) / 240 (45°) |
| Max. cutting capacity profile (mm) | 285 × 285 (90°) / 220 × 220 (45°) |
| Cutting speed range (m/min) | 15–90 |
PILOUS ARG 220
220
Max. cutting capacity (mm)
The PILOUS ARG 220 is a metal band saw designed for precise cutting of tubes, profiles and bar stock. Band sawing enables repeatable cutting without excessive thermal impact on the material and with controlled cut-edge quality.
| Angle cuts option | 90° až 45° |
| Max. cutting capacity for round timber (mm) | 220 (90°) / 150 (45°) |
| Max. cutting capacity profile (mm) | 220 × 220 (90°) / 150 × 150 (45°) |
| Cutting speed range (m/min) | 40–80 |
PILOUS ARG 130
130
Max. cutting capacity (mm)
The PILOUS ARG 130 is a metal band saw designed for precise cutting of smaller diameters and profiles. It is used to cut blanks from bars, tubes and profiles to the required lengths as an initial operation before downstream metalworking, where fast, repeatable cutting is needed for CNC machining, welded assemblies or assembly components.
| Angle cuts option | 90° / 45° / 60° |
| Max. cutting capacity for round timber (mm) | Ø 130 mm (90°) / Ø 115 (45°) / Ø 70 (60°) |
| Max. cutting capacity profile (mm) | 130 × 130 mm (90°) / 105 × 105 (45°) / 60 × 60 (60°) |
CNC plazmová řezačka
0,55 – 50
Max. material thickness (mm)
Computer-controlled CNC router for thermal cutting of steel, aluminu, and stainless steel sheets. Holes, exported shapes and saddles can be thermally cut into tubes and angles. The plasma router is ready for any aggregate with a manual or machine burner. It is usually possible to cut sheets and materials with a thickness of 0,55–50 mm with an accuracy of ±0,6 mm. The positioning accuracy of the machine is ±0,1 mm.
| Working area (mm) | 1 600 × 3 100 |
| Positioning accuracy (mm) | ±0,1 |
