Robots
Industrial robots for handling, CNC operation and welding
These technologies reduce errors, ensure a stable production process and deliver consistent quality in repeat production.

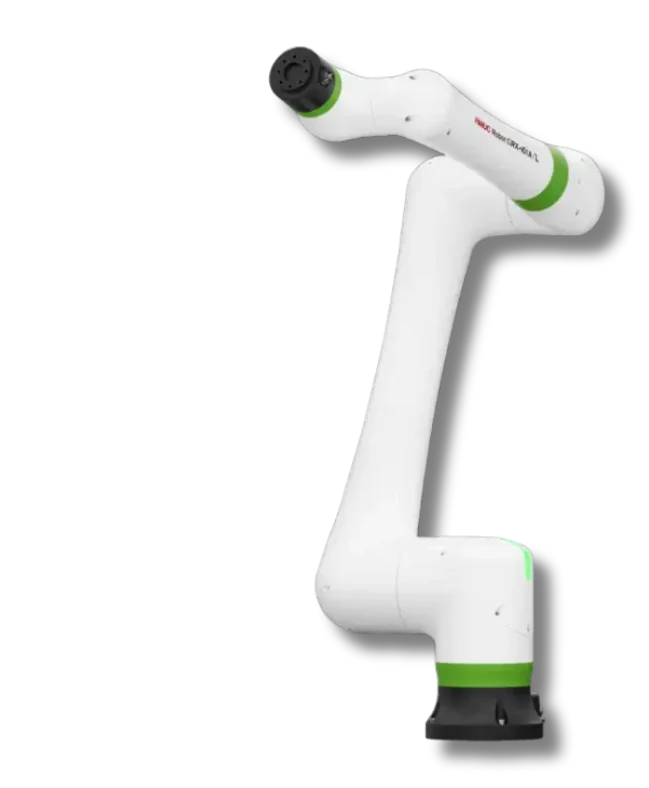

Fanuc CRX-10iA/L 220G
1 418
Reach (mm)
The FANUC CRX 10iA L collaborative robot is designed for positioning and handling machined parts, typically for loading and unloading components. Its long arm helps to serve a larger working area, and with a repeatability of around 0.04 mm, it can handle the stable and accurate positioning of CNC parts.
| Robot reach (mm) | 1 418 |
| Load capacity (kg) | 10 |
| Number of axes | 6 |
| Control unit | R-30𝑖B Plus Controller |
Fronius CWC-S TPS 400I CMT
± 0,04
Movement repeatability (mm)
The Fronius CWC S collaborative welding cell with TPS 400i CMT power source ensures stable robotic welding with high repeatability and controlled heat input. CMT technology works with controlled droplet transfer and lower heat input, resulting in a cleaner weld with less spatter and less thermal impact on the welded part.
| Welding table (mm) | 1 500 x 1 000 x 700 |
| Load capacity (kg) | 10 |
| Movement repeatability (mm) | ± 0,04 |
