Heat Exchanger Accessories
Connection components and mounting accessories for brazed and stainless steel plate heat exchangers.
In Stock
Immediate dispatch
48 h
Price Quote
ISO 9001:2015
Certified quality
In-house CNC
Custom dimensions available
Volume Discounts
Ordering larger quantities? We offer individual pricing for serial production and bulk orders.

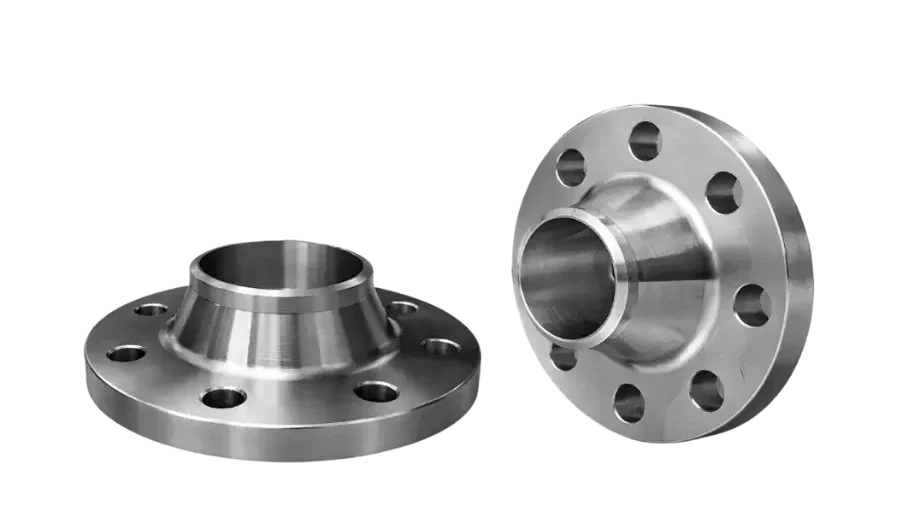

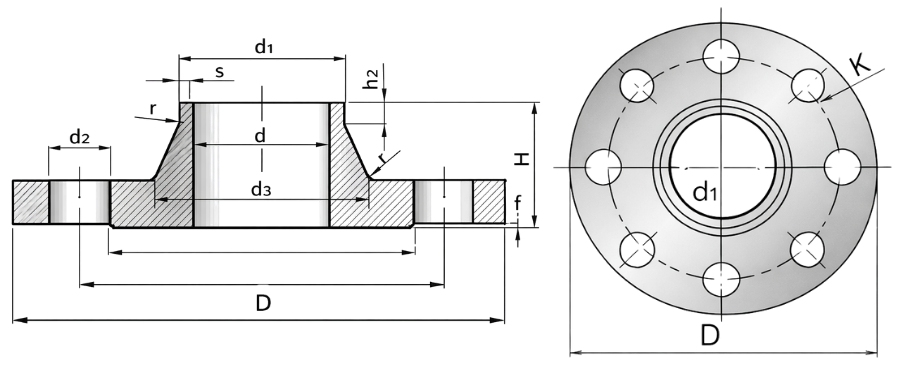

Weld Neck Flanges
EN 1092-1 · Type 11 · Carbon Steel
D vnější průměr
d₁ průměr krku
K roztečná kružnice
d₂ průměr šroubu
Weld neck flange for pressure piping systems with unrestricted media flow. Manufactured according to EN 1092-1, Type 11.
Included components
Product variants
| Version | Part No. | DN | PN | D (mm) | K (mm) | d1 (mm) | d2 (mm) | b (mm) | E-SHOP |
|---|---|---|---|---|---|---|---|---|---|
| DN100 / PN16 | AP000011 | 100 | 16 | 220 | 180 | 114,3 | 18 | 20 | View Product |
| DN80 / PN16 | AP000060 | 80 | 16 | 200 | 160 | 88,9 | 18 | 20 | View Product |
| DN100 / PN40 | 10015611 | 100 | 40 | 235 | 190 | 114,3 | 22 | 24 | View Product |
| DN80 / PN40 | 10015751 | 80 | 40 | 200 | 160 | 88,9 | 18 | 24 | View Product |

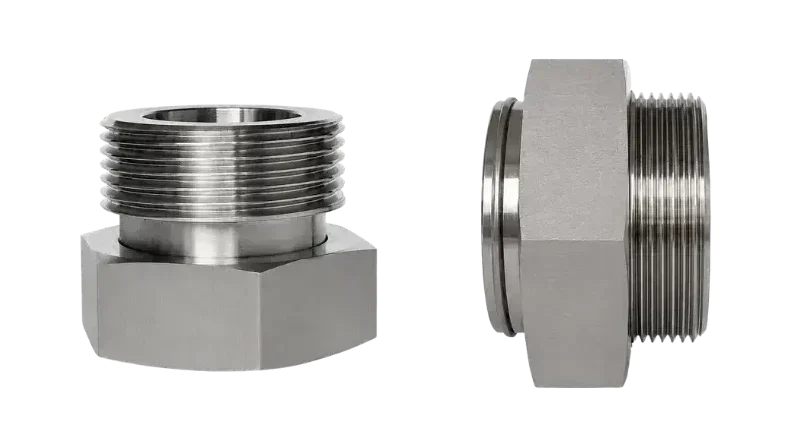

Stainless Steel Threaded Union
Union nut + tail piece + gasket
G velikost závitu
L délka šroubení
Complete stainless steel union connection for plate heat exchangers, valves and piping systems.
Suitable for potable water and hygienic applications.
Product variants
| Part No. | Thread (G) | DN (mm) | L (mm) | E-SHOP |
|---|---|---|---|---|
| 3456361001 | 3/4" | 20 | 30,5 | View Product |
| 3456361002 | 1" | 25 | 33 | View Product |
| 3456361003 | 5/4" | 32 | 36,5 | View Product |
| 3456361004 | 2" | 50 | 47 | View Product |
| 3456361005 | 2 1/2" | View Product |

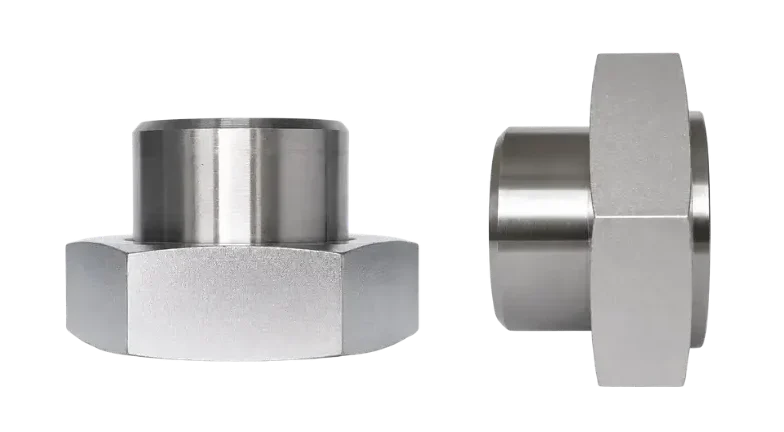

Fitting for Welding Connection
Union nut + weld stub + gasket
G velikost závitu
L délka šroubení
d průměr nátrubku
Steel weld fitting for piping systems and plate heat exchangers. Straight design with flat face for standard welded pipe connections.
Product variants
| Part No. | Thread (G) | DN (mm) | L (mm) | d (mm) | E-SHOP |
|---|---|---|---|---|---|
| 162623509 | 3/4" | 15 | 42 | 21,3 | View Product |
| 162623507 | 1" | 20 | 45 | 26,4 | View Product |
| 162623504 | 5/4" | 25 | 37 | 33,3 | View Product |
| 162623510 | 2" | 40 | 45 | 48,3 | View Product |
| 3456040603 | 2 1/2" | 50 | 50 | 60,3 | View Product |

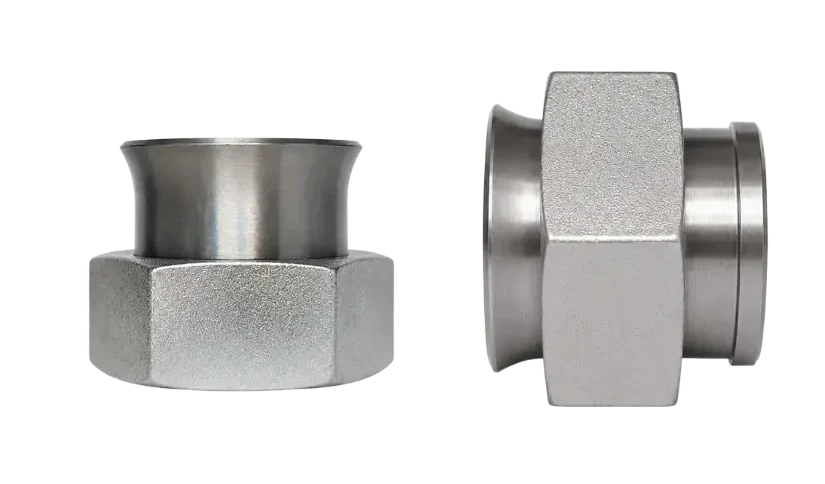

Expanded Fitting for Welding Connection
Union nut + expanded weld stub + gasket
G velikost závitu
L délka šroubení
d průměr nátrubku
Version with expanded weld stub designed for stronger weld joints in demanding pressure applications and installations requiring improved weld alignment.
Product variants
| Part No. | Thread (G) | DN (mm) | L (mm) | d (mm) | E-SHOP |
|---|---|---|---|---|---|
| 1112116 | 3/4" | 20 | 41±2 | 26,9±0,5 | View Product |
| 1111103 | 1" | 25 | 33±2 | 33,7±0,5 | View Product |
| 1111104 | 5/4" | 32 | 45±2 | 42,4±0,5 | View Product |
| 1111105 | 2" | 50 | 50±2 | 60,3±0,5 | View Product |
| 1111106 | 2 1/2" | 65 | 65±2 | 76,1±0,5 | View Product |

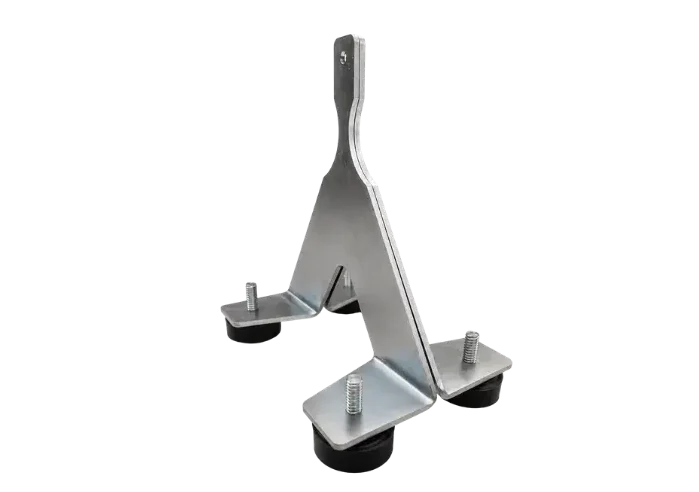

Heat Exchanger Mounting brackets
Zinc-plated supports for plate heat exchangers
Robust mounting brackets designed for secure installation of plate heat exchangers.
Available for selected heat exchanger series.
Product variants
| Compatible Models | Part No. | Height (mm) | Length (mm) | Width (mm) | E-SHOP |
|---|---|---|---|---|---|
| CB30 / AN27 / CB60 / AN52 | 162965402 | 205 | 50 | 60 | View Product |
| CB76 / CB77 / CB110 / CB112 / AN76 / AC120 | 3456108301 | 295 | 90 | 270 | View Product |
Volume discounts for larger orders
Ordering larger quantities? We offer individual pricing for serial production and volume orders.
- Quotation within 48 hours
- Volume-based pricing
- Non-binding inquiry
