CNC Tube Bending

Multi-radius bending of tubes and profiles made of steel, stainless steel, aluminium and brass.

CNC Tube bending

Tube bending capabilities

We bend tubes with diameters from 6 to 50 mm on BLM GROUP and CRIPPA machines. Right- and left-hand bends, as well as multiple bending radii, can be produced in a single program cycle. We process round, square and rectangular section profiles. Parts are supplied ready for further processing or final assembly.

Right + left bend in a single cycle

No machine reset required. Complex 2D/3D geometries produced faster and at lower cost per operation.

Multi-radius bending

Multiple bend radii within a single program cycle. Full repeatability across the entire production.

Mandrel bending

The mandrel prevents ovality in thin-walled tubes. Standard for HVAC, automotive and instrumentation applications.

Technical data

Tube size range

Select a tube diameter to see minimum bending parameters. Non-standard dimensions on request.

Select size

Selected size

D6×1

Bend radius RR15

Minimum straight length20 mm

Minimum distance between bends C20 mm

Minimum distance to flange B–

Tube end expansion for nut / fitting–

∗ Figures are indicative minimums. Contact us for part-specific assessment.

Verify Feasibility

Materials

Materials we machine

Steel

S355J2H; S355J2+AR/+M; 1.0060; 1.0503; 1.7131; 1.7225

Tool steel

1.2312; 1.2379; 1.8909

Stainless steel

1.4301; 1.4305; 1.4404; 1.4571

Brass

CW724R; CW617N

Aluminium

AW-6082; AW-2007; AW-7075; AW-6061; AW-6060; AW-1050A; AW-4014

Tailored material selection

We machine a wide range of materials beyond those listed, based on your specification. Material selection is determined by design, manufacturing requirements and final application.

Our work

Completed piping assemblies

CNC ohýbaný nerezový potrubní díl s tvarovanými konci pro hydraulický systém – výroba Aptec production

Formed piping part for hydraulic systems

Technologies Used

CNC Cutting
CNC Tube Bending
End forming
CNC Turning
Welding

CNC ohýbaný připojovací potrubní díl z mosazi a nerezu s vyhrdlovaným koncem – rozvod kapalin, výroba Aptec production

Connector piping part for fluid distribution

Technologies Used

CNC Cutting
CNC Tube Bending
Tube Collaring
CNC Turning

CNC ohýbaná trubka s tvarovaným koncem a černou povrchovou úpravou pro chladicí a vzduchové systémy vozidel – Aptec production

Bent part for vehicle cooling and air systems

Technologies Used

CNC Cutting
CNC Tube Bending
End forming
Surface finishing

CNC ohýbané ocelové ovládací táhlo s přesným ohybem pro mechanické systémy strojů – zakázková výroba Aptec production

Bent control rod for mechanical machine systems

Technologies Used

CNC Cutting
CNC Tube Bending

Dva CNC ohýbané potrubní díly s temovanými konci a černou povrchovou úpravou pro rozvod kapalin a médií – Aptec production

Bent part for fluid and media distribution

Technologies Used

CNC Cutting
CNC Tube Bending
End forming
Surface finishing

Machinery

Fully electric CNC mandrel tube benders

On the BLM GROUP and CRIPPA machines, we produce simple spacer tubes as well as complex tube assemblies including end forming, welding and surface treatments.

Machine	Max. Ø	Technology

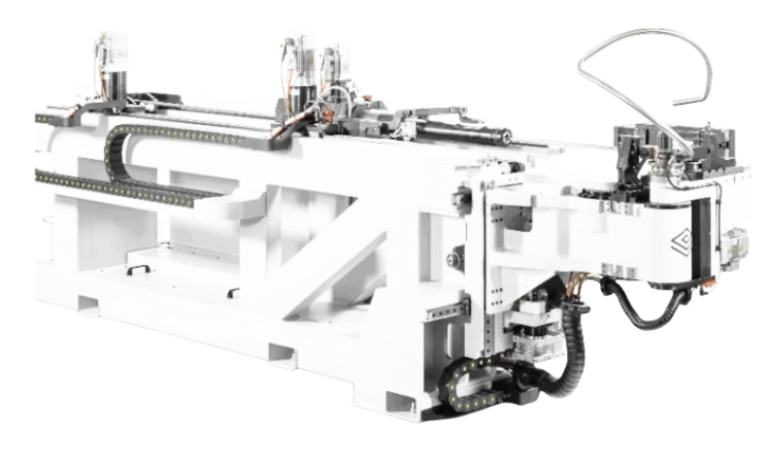

BLM ELECT 52	Ø 50 mm	Large diameters, right + left bend, multiple radii
BLM SMART	Ø 28 mm	Small diameters, mandrel bending, tight radii
CRIPPA 532	Ø 32 mm	Multi-axis CNC bending, variable radii, spatial shapes
